9V/6F22

Soshine 9V 6F22 Li-po Rechargeable Battery: 680mAh 7.4V

Product Overview

9V/6F22 Li-po Battery: 680mAh 7.4V

Model: Li-7.4V-680

Your email:
Additional Comments:
Check:

Description

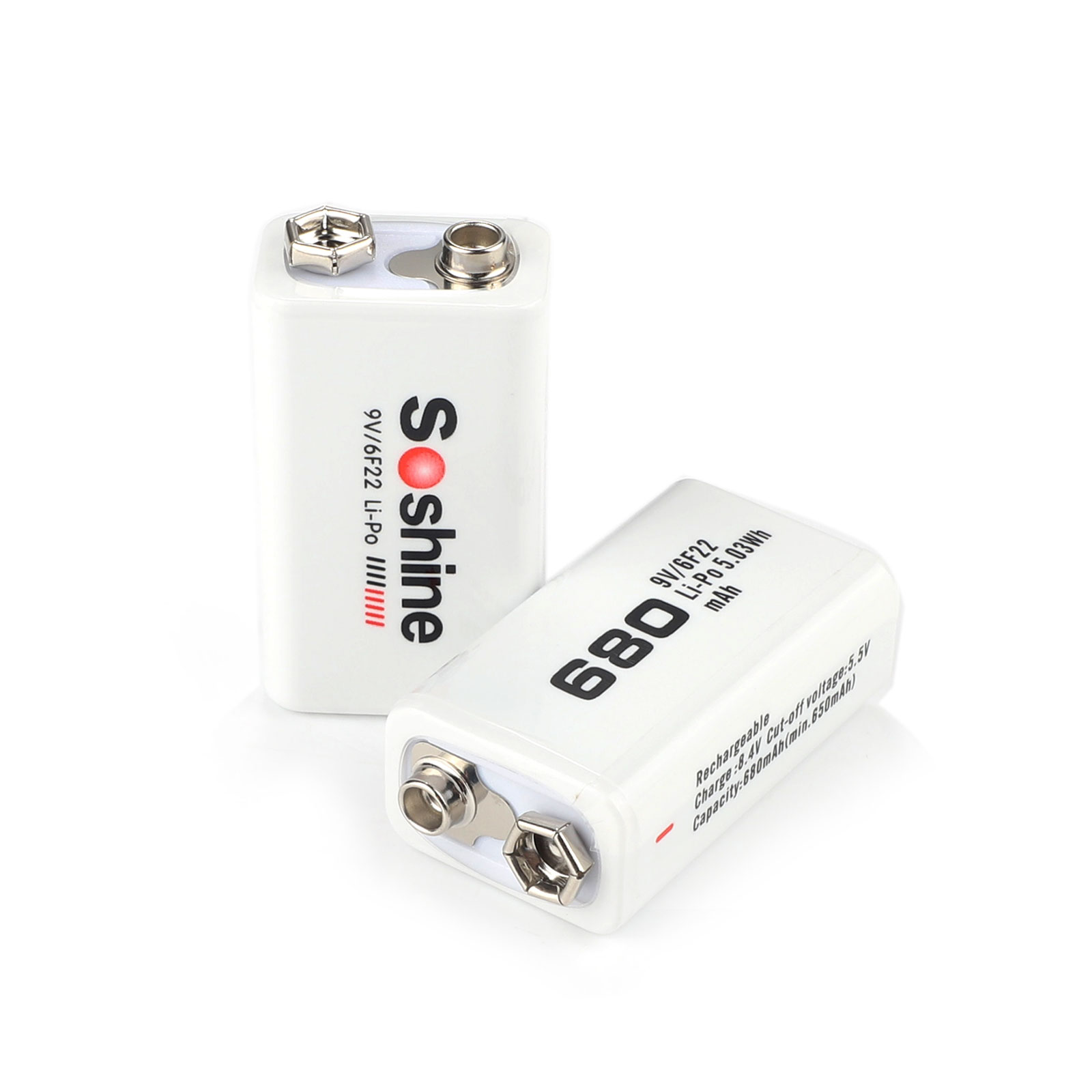

Soshine 9V/6F22 Li-po Rechargeable Battery: 680mAh 7.4V

Model: Li-7.4V-680

Can charged by other 9V charger
Slim design(15.4mm)
Ready to use at any time

Specification:

Type:      Rechargeable Li-Po
Dimension:(48.5+-0.5)*(26.1+-0.2)*(15.4+-0.3)mm (max)
C5mAh: 650(mini)
C5mA:    680mAh
Nominal Voltage:    7.4V
Capacity : Nominal   680mAh
              Minimum  650mAh

Internal resistance: 144-150 mΩ
when discharged at 0.2C5mA to 5.5V
Recommended Charging Conditions:0.2C5mA charge termination control parameters taper current 0.01C5mA at 8.4V
Service Life: 500 cycles(>=60% C5mAh,0.2C discharge)
Weight: 29g (1 cell),
Charging Voltage:  8.4+/-0.15V
Ambient Temperature Range
Charging :      0-45 centigrade
Discharging: -20 to +60 centigrade
Storage :       -20 to +40 centigrade

Note:

(1) The batteries should be stored at room temperature,charged to about 30% to 50% of capacity.

(2) During long term storage,in order to ensure the battery to maintain the capacity level,we suggest Li-ion batteries should be charged and discharged once every 6 months.
