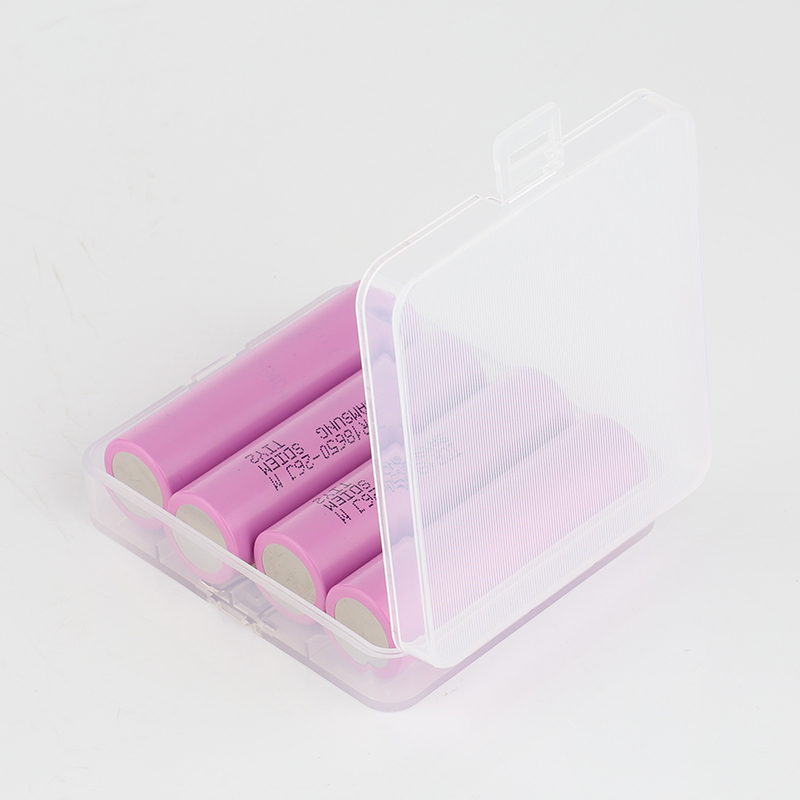

SAMSUNG ICR 18650 26JM Original Li-ion Battery
Specification:
- Nominal Capacity: 2600mAh (0.2C,2.75V discharge)
- Minimum Capacity: 2550mAh (0.2C,2.75V discharge)
- Charging Voltage: 4.2±0.05V
- Nominal Voltage: 3.63V
- Charging Method: CC-CV (constant voltage with limited current)
- Charging Current:
Standard charge: 1300 mA
Rapid charge: 2600 mA
- Charging Time:
Standard charge: 3 hours
Rapid charge: 2.5 hours
- Max. Charge Current: 2600 mA (ambient temperature 25℃)
- Max. Discharge Current: 5200 mA (ambient temperature 25℃)
- Discharge Cut-off Voltage: 2.75V
- Cell Weight: 45 g max
- Cell Dimension: Height: 65.00 mm max Diameter: 18.40mm max
- Operating Temperature:
Charge: 0~45 ℃
Discharge: -20~60℃
- Storage Temperature:
1 year: -20~25℃
3 months: -20~45 ℃
1 month : -20~60 ℃
Note:
(1) The batteries should be stored at room temperature,charged to about 30% to 50% of capacity.
(2) During long term storage,in order to ensure the battery to maintain the capacity level,we suggest Li-ion batteries should be charged and discharged once every 6 months.
