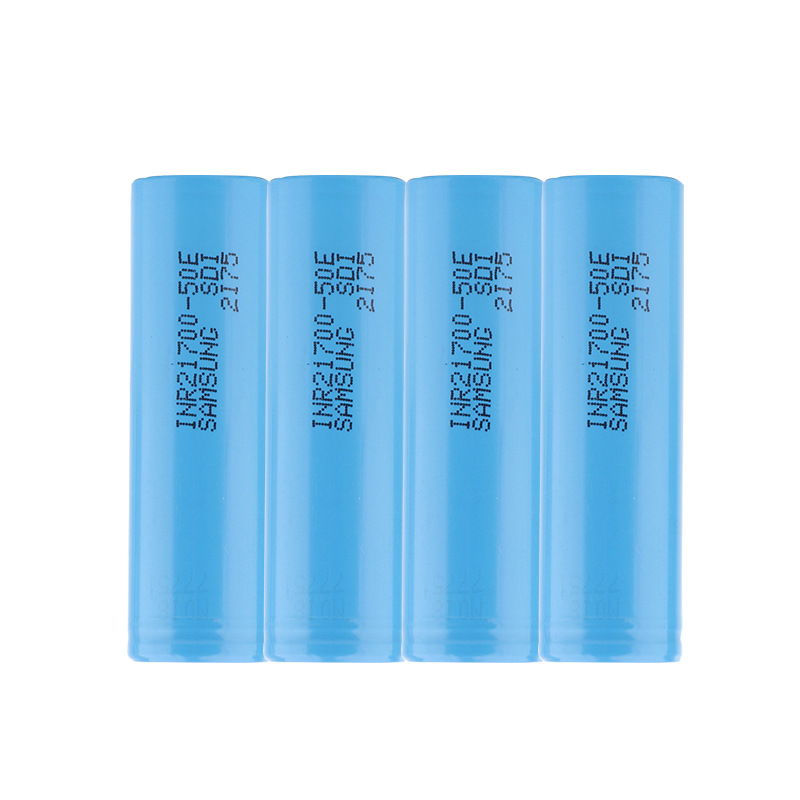

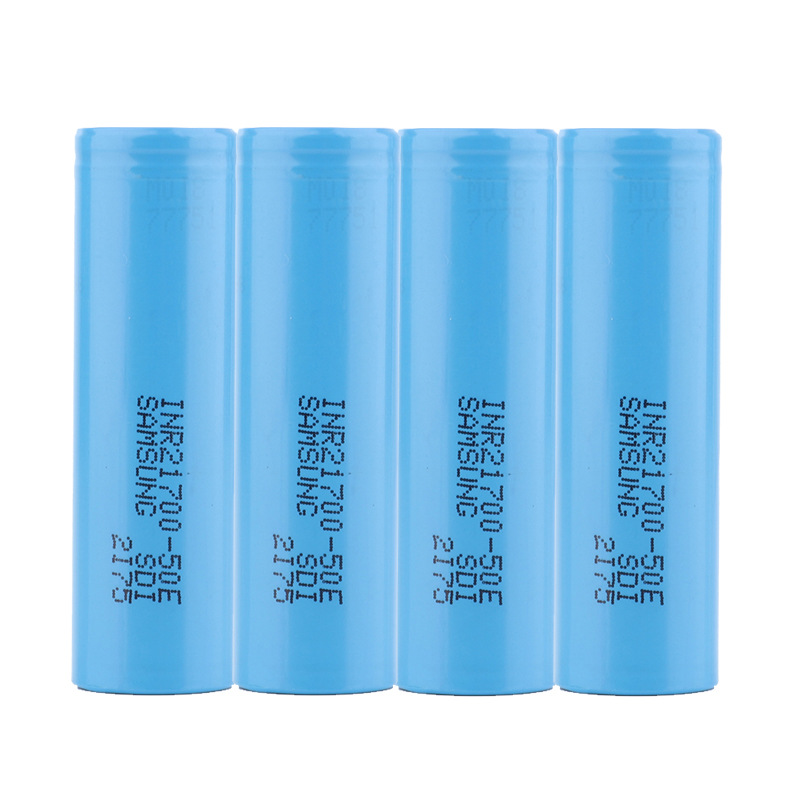

Original Battery



Specification:

- Standard discharge Capacity: Min 4900 mAh

  Charge: 0.5C (2450 mA),4.2V,0.02C (98mA) cutoff @RT

  Discharge: 0.2C (980 mA),2.5V cutoff @RT

  *1C =4900mA

- Rated discharge Capacity: Min 4753mAh

  Charge: 0.5C (2450mA),4.2V,0.02C (98mA) cutoff @RT

  Discharge: 1C (4900 mA),2.5V cutoff @RT

- Charging Voltage: 4.2V

- Nominal Voltage: 3.6V

- Charging Method: CC-CV (constant voltage with limited current)

- Charging Current: Standard charge: 2450mA

- Charging Time: Standard charge: 3 hours

- Max. Charge Current: 4900mA (not for cycle life)

- Max. Discharge Current:

   9800mA (for continuous discharge)

   14700mA (not for continuous discharge)

- Discharge Cut-off Voltage: 2.5V

- Cycle life:

  Capacity≥3802mAh @ after 500 cycles (80% of the Rated Discharge Capacity @ RT)

   - Charge: 0.5C (2450mA),4.2V,CCCV 0.5C (245mA) cut-off @RT

   - Discharge: 1C (4900mA),2.5V cut-off @RT

- Cell Weight: 69g max

- Cell Dimension:

  Cell height:  Max.70.80mm

  Diameter: Max.20.25 mm

- Operating Temperature:

  Charge: 0~45℃

  Discharge: -20~60℃

- Storage Temperature:

  1 year: -20~23 ℃

  3 months: -20~45℃

  1 month: -20~60℃



Note:

(1) The batteries should be stored at room temperature,charged to about 30% to 50% of capacity.

(2) During long term storage,in order to ensure the battery to maintain the capacity level,we suggest Li-ion batteries be charged and discharged once every 6 months.
