Original Battery

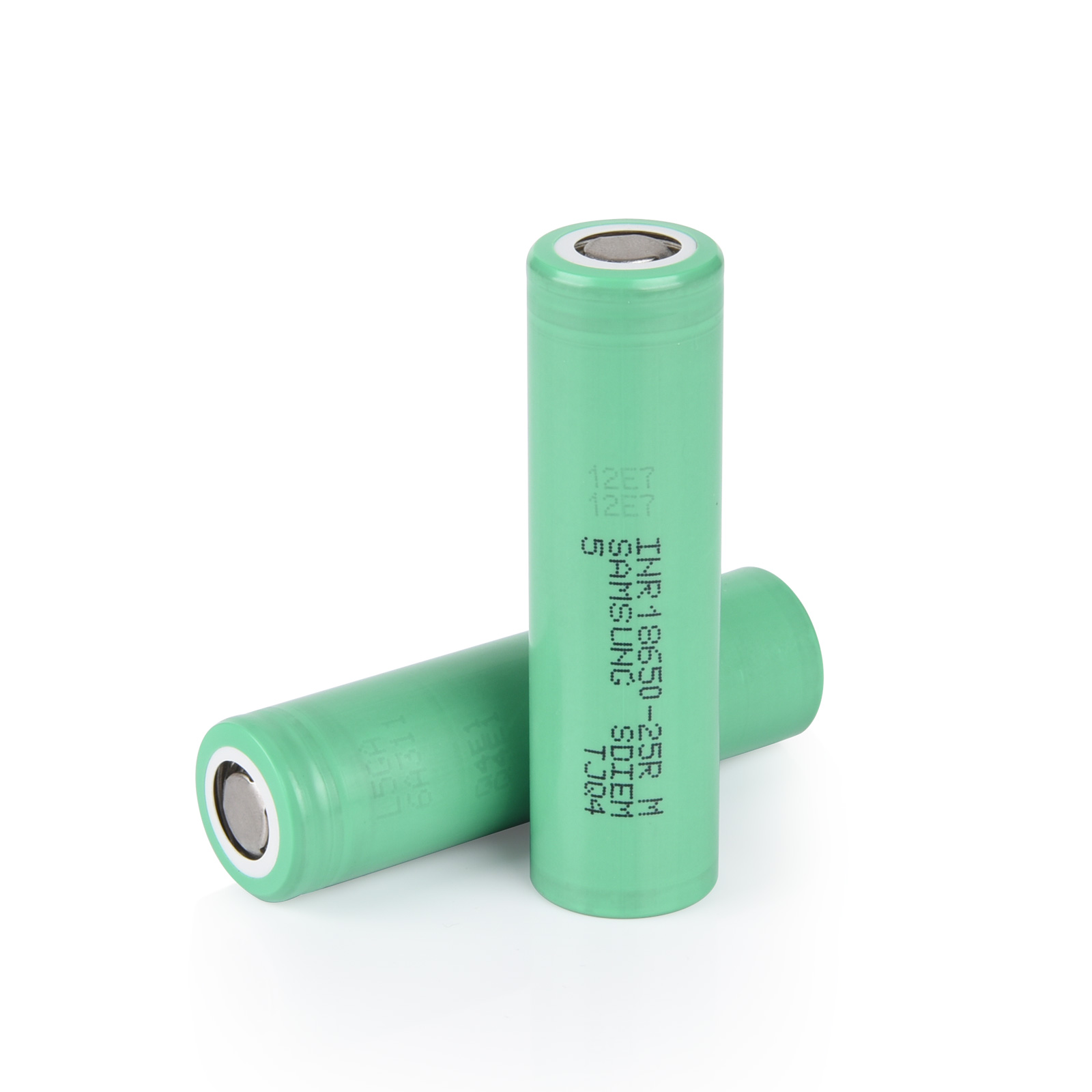

SAMSUNG Original INR 18650 25RM 2500mAh 20A High Capacity Battery
SAMSUNG Original INR 18650 25RM 2500mAh 20A High Capacity Battery
Product Overview
Model:  INR18650-25RM
Contact us:siling.soshine@gmail.com
or use this form to request a quote.
  Your email:
  Additional Comments:
SAMSUNG Original Battery
INR 18650 25RM 2500mAh 20A High Capacity
- Nominal discharge capacity: 2500mAh
  (Charge: 1.25A,4.20V,CCCV 100mA cut-off,
   Discharge: 0.2C,2.5V discharge cut-off)
- Nominal voltage: 3.6V
- Standard charge: CCCV, 1.25A,4.20±0.05V,100mA cut-off
- Rapid charge: CCCV,4A,4.20±0.05V,100mA cut-off
- Charging time: Standard charge: 180 min /100mA cut-off
                         Rapid charge: 60 min (at 25℃)/100mA cut-off
- Max.continuous discharge (Continuous): 20A (at 25℃),60% at 250 cycle
- Discharge cut-off voltage (End of discharge): 2.5V
- Cell weight: 45.0g max
- Cell dimension: Height: 64.85±0.15mm
                         Dimeter: 18.33±0.07 mm
- Operating temperature (Surface temperature):
  Charge: 0~50℃ (recommended recharge release<45℃)
  Discharge: -20~75℃ (recommended re-discharge release <60℃)
- Storage temperature (Recovery 90% after storage):
  1.5 year : -30~25℃
  3 months: -30~45℃
  1 month: -30~60℃
(1) The batteries should be stored at room temperature,charged to about 30% to 50% of capacity.
(2) During long term storage,in order to ensure the battery to maintain the capacity level,we suggest Li-ion batteries should be charged and discharged once every 6 months.
