Soshine Rechargeable Li-ion 18650 Protected Battery with Built-In Micro USB Port: 2600mAh
Soshine Rechargeable Li-ion 18650 Protected Battery with Built-In Micro USB Port: 2600mAh
Product Overview
Rechargeable USB Battery Li-ion 18650:2600 mAh
Model:  18650USB-3.7-2600
Contact us:siling.soshine@gmail.com
or use this form to request a quote.
  Your email:
  Additional Comments:
  Check:
Description
Soshine Rechargeable Li-ion 18650 Protected Battery
with Built-In Micro USB Port: 2600mAh 3.7V
Bar Code: 6951151512307

Model: 18650USB-3.7-2600


The battery can be charged by its own USB port and by the charger as well. A protective circuit is built into the anode.

Battery height only 68.5 mm



Features:

- Micro-USB charging port with LED to indicate if battery charging done.
- Protection circuit built in the anode.

- Multiple protection with Pressure Relief Vent.
- Short circuit protection, Over charge protection, Over discharge protection
- 1000 charge cycles (A properly maintained battery is designed to retain up to75% of its original capacity at 1000 full charge and discharge cycles)



Specifications:
Model: 18650USB-3.7-2600
Battery Type: 18650 rechargeable

Chemistry: Li-ion


Nominal Capacity: 2600mAh

Minimum Capacity: 2500mAh

Nominal Voltage: 3.6V

Charge Voltage: 4.2V

Internal resistance (mΩ):48-51

Max. Discharge Current: 2.5A
Charging current by charger: 1A(recommended) 2A (maximum)
Charging current by on-board USB port : 1A
Warranty: 12 months

Dimensions:

Battery Size (D x H mm): 18.6x 68.5
Package Size (L x W x H mm):90x76x25
Weight:
Battery Weight:45g(1PC), 180g(4PCS)
Battery +case with Package Weight: 220g

LED indicator:

Charge---red,

Charge complete---green



Test conditions:
1) Temperature: 25~30℃
2)Equipment: GHC5V50A32Z

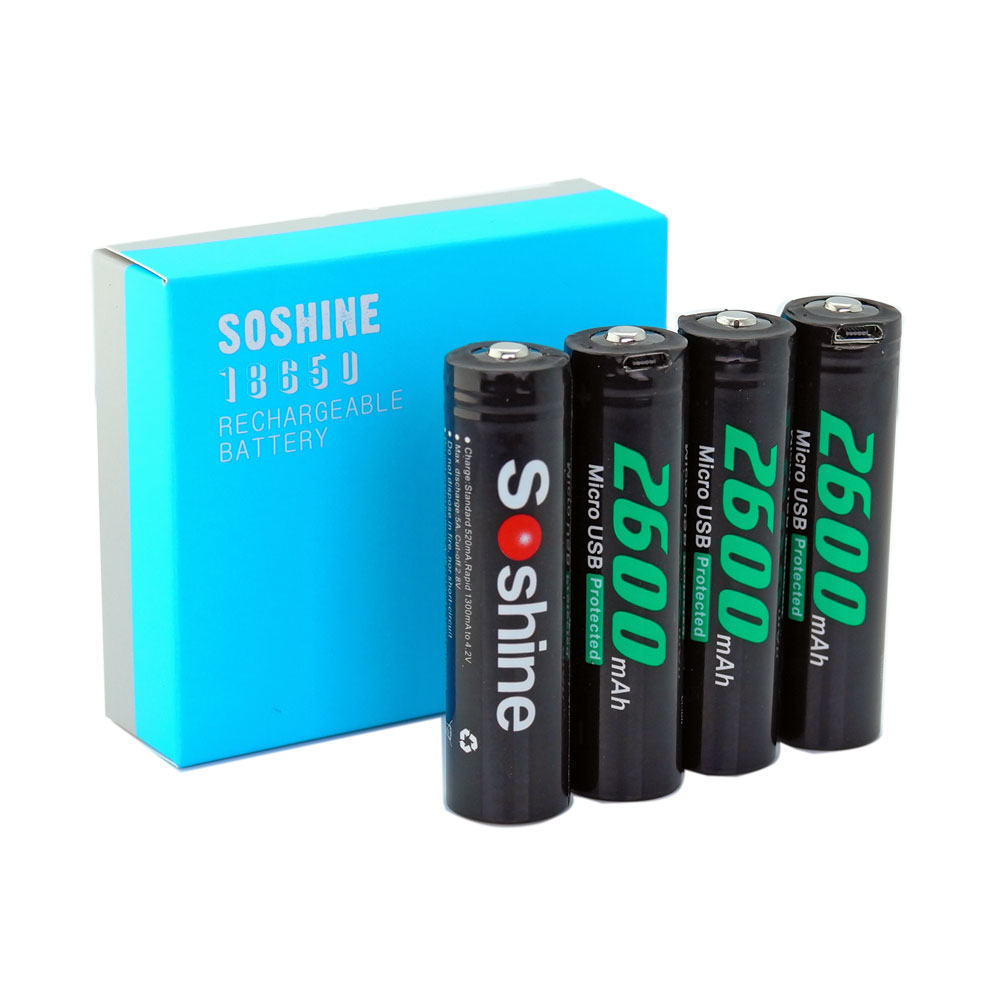

Includes:
- 4 x direct USB rechargeable 18650 Li-ion battery

- 1 x 18650 battery case



Note: Batteries are shipped from factory with partial charge to meet optimum storage conditions. Fully charge before use.



Warnings: Do not expose battery to heat or throw into water. After extended periods of storage, it may be necessary to charge the battery to obtain the maximum performance every three months.Keep the battery out of reach of children.

This product is patented.
