Li-FePO4 Battery

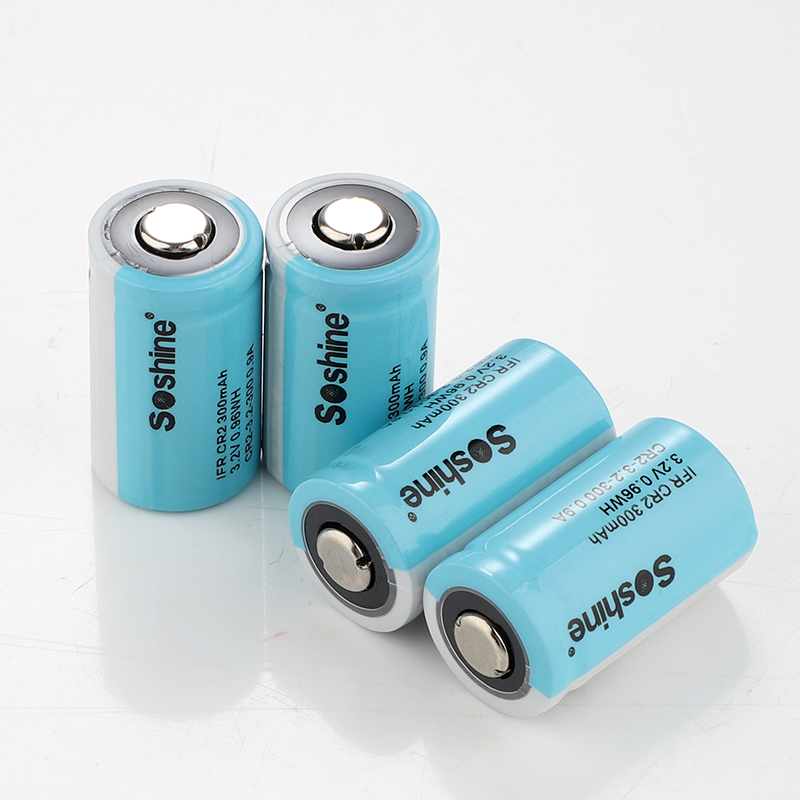

LiFePo4 battery 15266( IFR CR2) 3.2V 300mAh
LiFePo4 battery 15266( IFR CR2) 3.2V 300mAh
Product Overview
Model:  CR2-3.2-300
Contact us:siling.soshine@gmail.com
or use this form to request a quote.
  Your email:
  Additional Comments:
LiFePo4 battery 15266( IFR CR2) 3.2V 300mAh

Bar Code: 6951151512529

Model: CR2-3.2-300


Normal voltage: 3.2V

End-off voltage: 2.0V

Normal capacity: 300mAh

Max dimension: 15.5x27.0mm

Operating temperature: -10oC - +60oC

Storage temperature: -10oC - +45oC

Continuous current: 1000mA (max.)

Pulse current: 2000mA (max.)

Internal resistance: 77-85 mΩ

Max weight: 13.0g



1) High quality and operating voltage 3.2V LiFePO4  rechargeable battery.

2) Product details: 15266 LiFePo4 battery with capacity: 300mAh.

3) Light weight, higher energy density, small volume.

4) Longer service life, 1C for Circulation using 2000 charge/discharge Cycle, Capacity above 80%.

5) Low self-discharge.

6) No memory effect.

7) Safer and environmentally friendly.


(1) The batteries should be stored at room temperature,charged to about 30% to 50% of capacity.
(2) During long term storage,in order to ensure the battery to maintain the capacity level,we suggest that batteries should be charged and discharged once every 6 months.


Certification /Test Report download:

CE-EMC: http://www.soshine.com.cn/Down99.aspx

RoHS: http://www.soshine.com.cn/Down120.aspx

MSDS: http://www.soshine.com.cn/Down121.aspx



Time:2017-07-8  Views:2675
