Li-ion batt. protected

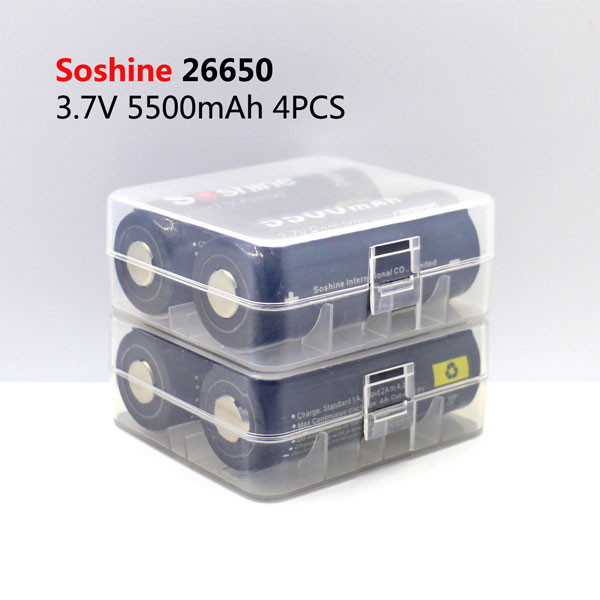

Soshine Li-ion 26650 Battery With Protected: 3.7V 5500mAh

Product Overview

Battery With Protected Li-ion 26650

Model: 26650P-3.7-5500

Your email:
Additional Comments:
Check:

Description

Soshine Li-ion 26650 Battery With Protected: 5500mAh 3.7V

Bar Code: 6951151512512
Model: 26650P-3.7-5500

Product Details:
Material: Li-ion
Type: 26650
Nominal Voltage: 3.7V (at 0.2C discharge current)
Capacity:5500mAh(Typical),
5100mAh(Minimum) (From 4.2V to2.8V at 0.2C discharge current)

Internal resistance: 34-40 mΩ
Charge Method: CC/CV (Constant Current/Constant Voltage)
Charge Voltage: 4.2±0.049V
Charge Current: 1000mA×6hrs (Standard) 2000mA×3hrs (Rapid)
Discharge Current: 2500mA(Normal Discharge Current) 5000mA(Maximum Continuous Discharge)

Discharge Cut-off Voltage 2.8V/cell
Charge:10 ~ +50°C Discharge:-20 ~ +55°C
Non-operating Temperature -40 ~ +60°C
Diameter: D26*H68.5mm, L72.2xW54 x H28 mm(Case)

Weight: 95g (1 cell),

98 g (1 cell with package),

224 g (2 cell with package)

Maximum voltage protection: 4.25V

Minimum voltage protection: 2.35V

Maximum current protection: 9000 mA

Maximum continuous current: 6500 mA

Note:
(1) The batteries should be stored at room temperature,charged to about 30% to 50% of capacity.
(2) During long term storage,in order to ensure the battery to maintain the capacity level,we suggest Li-ion batteries should be charged and discharged once every 6 months.

Test conditions:

1) Temperature: 25~30℃

2）Equipment: GHC5V50A32Z
