Li-ion batt. protected

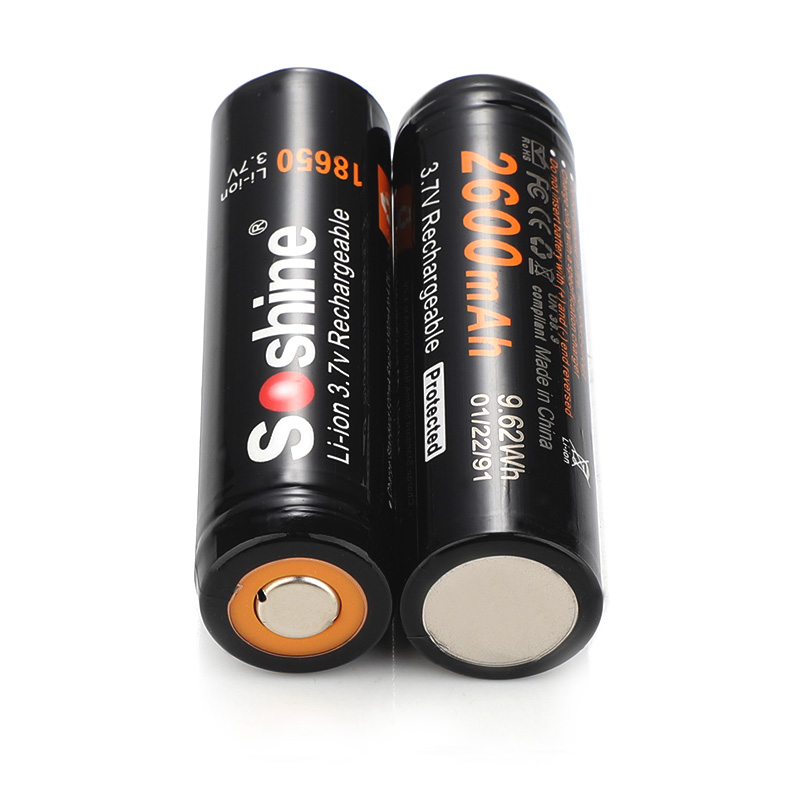

Soshine Li-ion 18650 Battery With Protected: 3.7V 2600mAh

Product Overview

In Built Safety Circuitry

Model: 18650P-3.7-2600

Your email:
Additional Comments:
Check:

Description

Soshine 18650 Li-ion Battery With Protected: 2600mAh 3.7V

Bar Code: 6951151512277

Model: 18650P-3.7-2600

Features:
Positive nipple.
Positive protection.
Height: 68.5mm.
In Built Safety Circuitry .
Protection: overcharge protection, over discharge protection, short circuit protection.
Current: instantaneous discharge current 12A, continuous discharge current 2.6A.

Specifications:
System: Cylindrical Li-ion Battery
Type: 18650
Nominal Voltage: 3.7V
Capacity: 2600mAh

Mini capacity: 2500mAh

Internal resistance: 62-68 mΩ
PCB Protected board against:
Over charge (4.275±0.04V)
Over discharge (2.65±0.08V)
Over current

Maximum voltage protection: 4.25 V

Minimum voltage protection: 2.35 V

Maximum current protection: 6000 mA

Maximum continuous current: 5000 mA

Note:

(1) The batteries should be stored at room temperature,charged to about 30% to 50% of capacity.

(2) During long term storage,in order to ensure the battery to maintain the capacity level,we suggest Li-ion batteries should be charged and discharged once every 6 months.

Test conditions:

1) Temperature: 25~30℃

2）Equipment: GHC5V50A32Z

Dimension:
Positive hardware Diameter-d-7.5 mm
1 x Battery Size (mm): 68.5 x 18 (H x D)
4 x Battery Size (mm): 68.5x 18 x 18
Package Size (mm): 90 x 76 x 25(L x W x H)

Weight:
1 x Battery Weight (g): 47
2 x Battery+Battery Case (g):117
4 x Battery+Battery Case (g): 227

Package included:
4 x 18650(2600mAh)
1 x Battery Case(18650x4)

Packing details:

1 pcs/white color box

196-198 boxes/carton

9.9 kg/carton

Carton size: 34*12*27 cm

Time:2013-07-18 Views:5158
