Li-ion batt. protected

Description

Features:

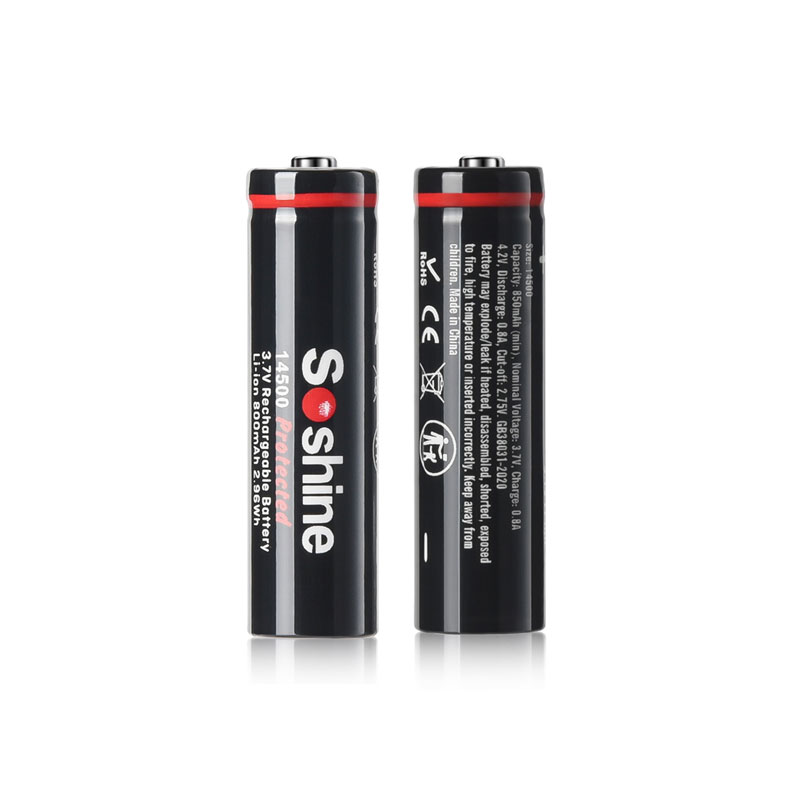

AA Li-Ion rechargeable battery 3.7V 14500 size Cylindrical Li-ion Cell, same size as AA 1.2V rechargeable NiMH and NiCd battery.

No memory effect and longer storage life than NiMH Batteries.

Lighter weight and higher energy density than any other rechargeable batteries.

14500 cell has same size as an AA size battery, but has 3 times higher voltage.

It is perfect for building battery pack for RC aircraft, RC cars, and RC robots.

Can use special PCB ( protection IC) to build 14500 battery pack.

Protected board against short circuit, over discharge, over-current discharge.



Specification: 14500/AA

Capacity: 800mAh(min 850mAh)

Rechargeable for 1000 times

Peak Voltage: 4.2V

Nominal/Working Voltage: 3.7V

Maximum charge current: 1.5C

Maximum discharge current: 2C

Internal resistance: 104-110 mΩ

Temperature: -40℃~60℃

Dimension: 14.5x50.5mm

Protected board against short circuit, over discharge, over-current discharge.

Maximum voltage protection: 4.25V

Minimum voltage protection: 2.35V

Maximum current protection: 2000mA

Maximum continuous current: 1500mA



Note:

(1) The batteries should be stored at room temperature,charged to about 30% to 50% of capacity.

(2) During long term storage,in order to ensure the battery to maintain the capacity level,we suggest Li-ion batteries should be charged and discharged once every 6 months.



Test conditions:

1) Temperature: 25~30℃

2）Equipment: GHC5V50A32Z
