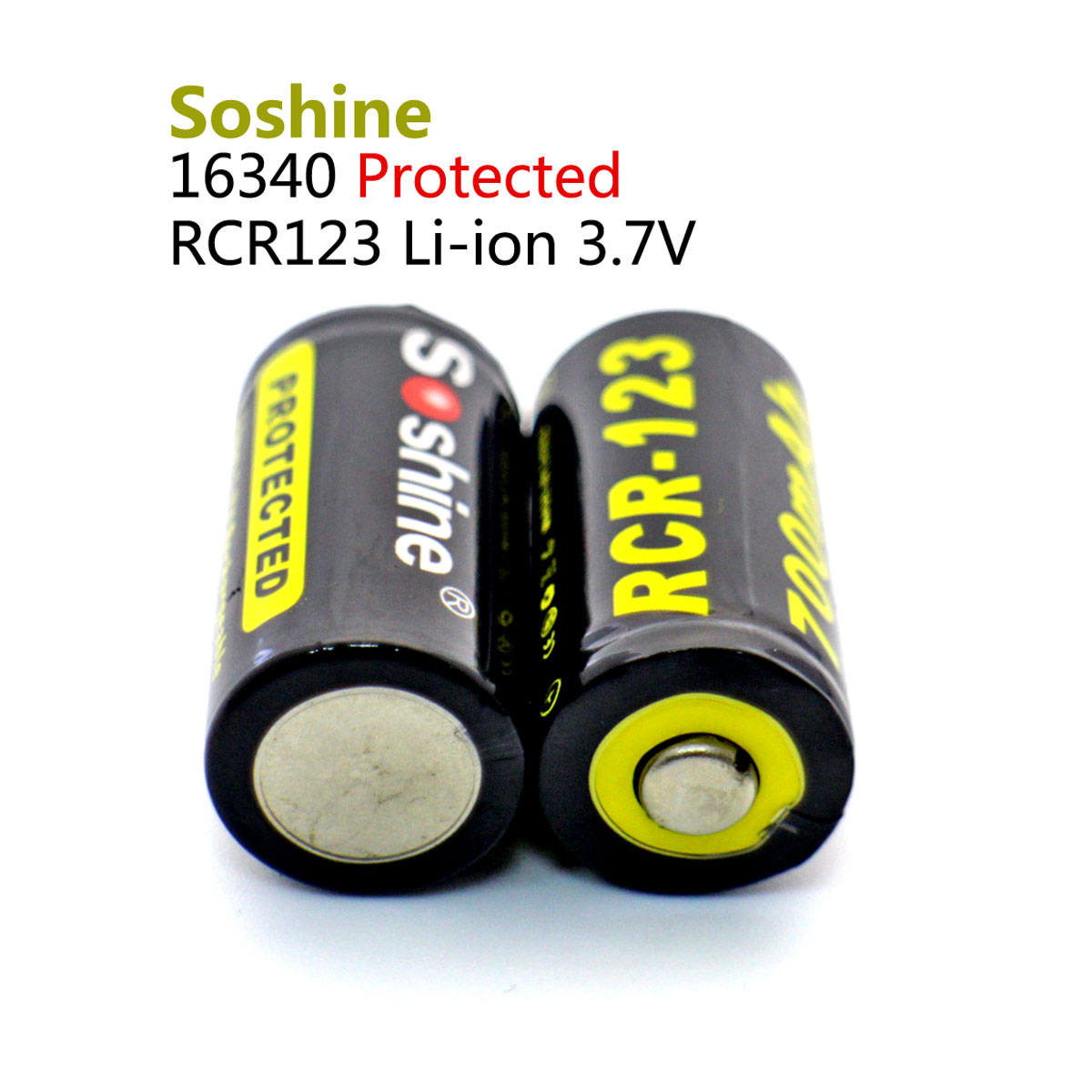

Soshine Li-ion RCR123 Battery With Protected: 3.7V 700mAh
Soshine Li-ion RCR123 Battery With Protected: 3.7V 700mAh
Product Overview
Li-ion 3.7V 700mAh Battery With Protected

Model:  RCR123P-3.7-700
Contact us:siling.soshine@gmail.com
or use this form to request a quote.
  Your email:
  Additional Comments:
  Check:
Description
Soshine Li-ion RCR123 Battery With Protected: 700mAh 3.7V

Bar Code:  6951151512147

Model: RCR123P-3.7-700

3.7V 700mAh rechargeable Li-ion battery with protected

Can replace for CR123, CR17345, K123A, VL123A, DL123A, 5018LC, SF123A and EL123AP

The voltage of full charge & empty condition is 4.2v & 2.75v.




Material: Li-ion
Specification: 16340
Nominal Voltage: 3.7 V
Capacity: 700 mAh
Charge Method:CC/CV (Constant Current/Constant Voltage)
Charge Current:     300mA×3hrs (Standard)
                              600mA×2hrs (Rapid)
Discharge Current: 350 mA (Normal Discharge Current)
                               700 mA (Maximum Continuous Discharge)

Internal resistance: 128-137 mΩ
Dimension:
Diameter-D-18.5 max
Height-H-35.5 max
Diameter-d-5.9
Weight approx: 18 g

Maximum voltage protection: 4.25 V

Minimum voltage protection: 2.35V

Maximum current protection: 2500 mA

Maximum continuous current: 1500 mA



Note:
(1) The batteries should be stored at room temperature,charged to about 30% to 50% of capacity.
(2) During long term storage,in order to ensure the battery to maintain the capacity level,we suggest Li-ion batteries should be charged and discharged once every 6 months.



Test conditions:

1) Temperature: 25~30℃

2)Equipment: GHC5V50A32Z






 Features:

1) High quality and operating voltage 3.7V Li-ion rechargeable battery.

2) Product detail: ICR16340 Lithium-ion battery with capacity: 700mAh.

3) Light weight, higher energy density, small volume.

4) Longer service life, 1C for Circulation using 500 charge/discharge Cycle, Capacity above 80%.

5) Low self-discharge.

6) No memory effect.

7) Safe and environmentally friendly.
