Smart LiFePO4 Battery Charger For RCR123 CR2 3.2V|S5(Fe)
Smart  LiFePO4 Battery Charger  For RCR123  CR2 3.2V|S5(Fe)
Product Overview
Charger for RCR123 CR2 3.2V
Model:  S5(Fe)
Contact us:siling.soshine@gmail.com
or use this form to request a quote.
  Your email:
  Additional Comments:
  Check:
Description

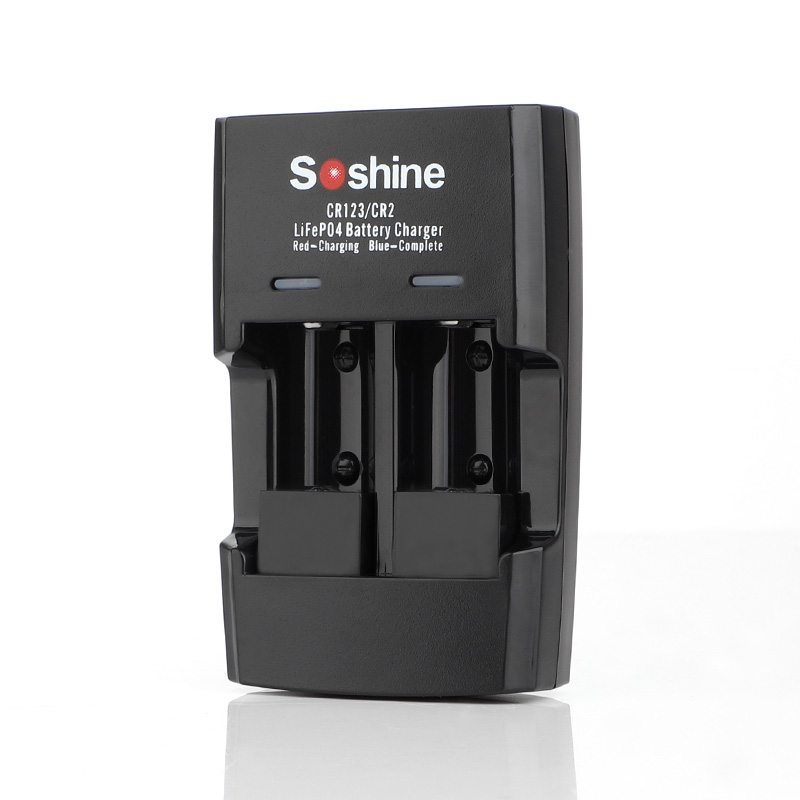

Smart LiFePO4 Battery Charger For RCR123 CR2

Bar code: 6951151524546
Model: SC-S5(Fe)

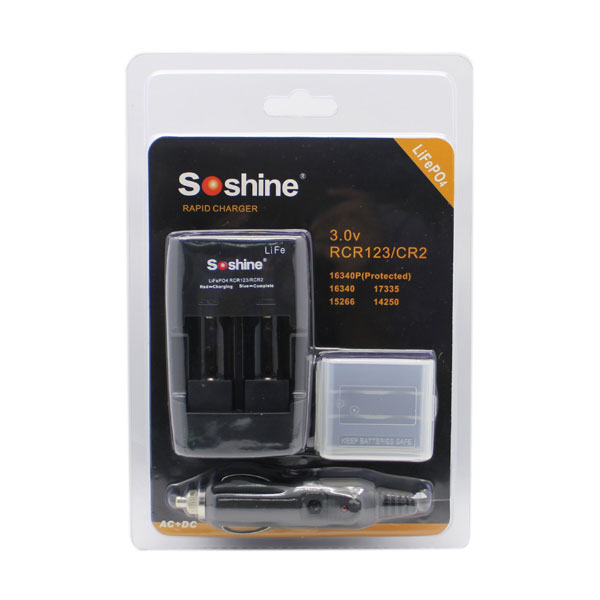

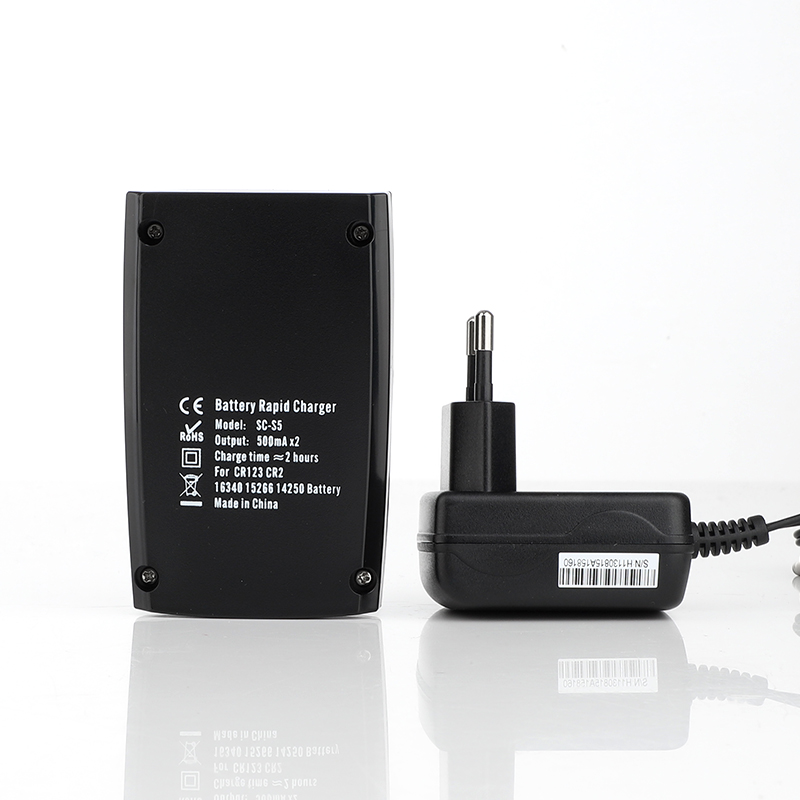

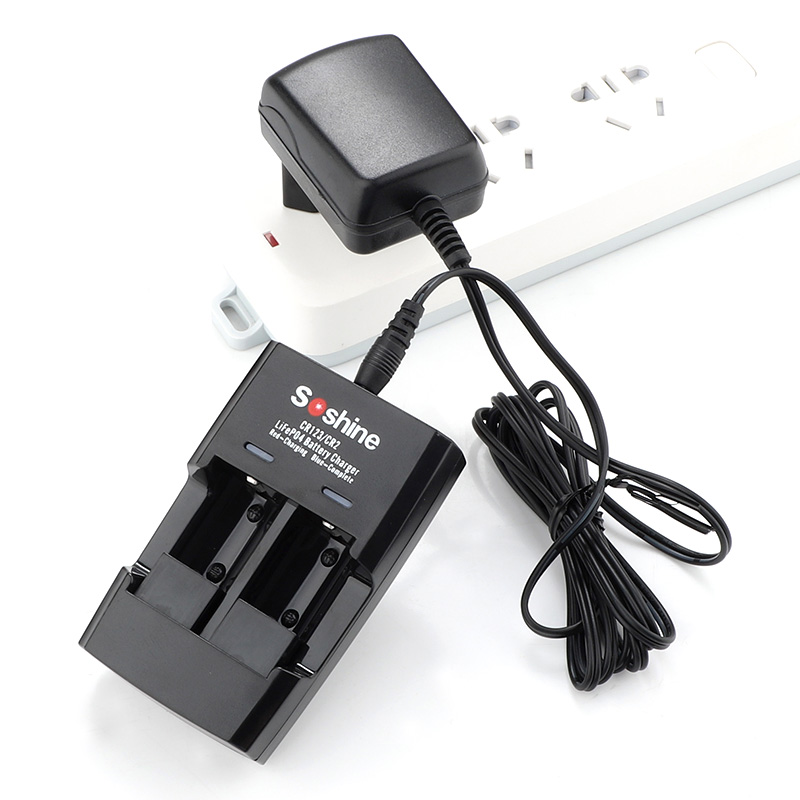

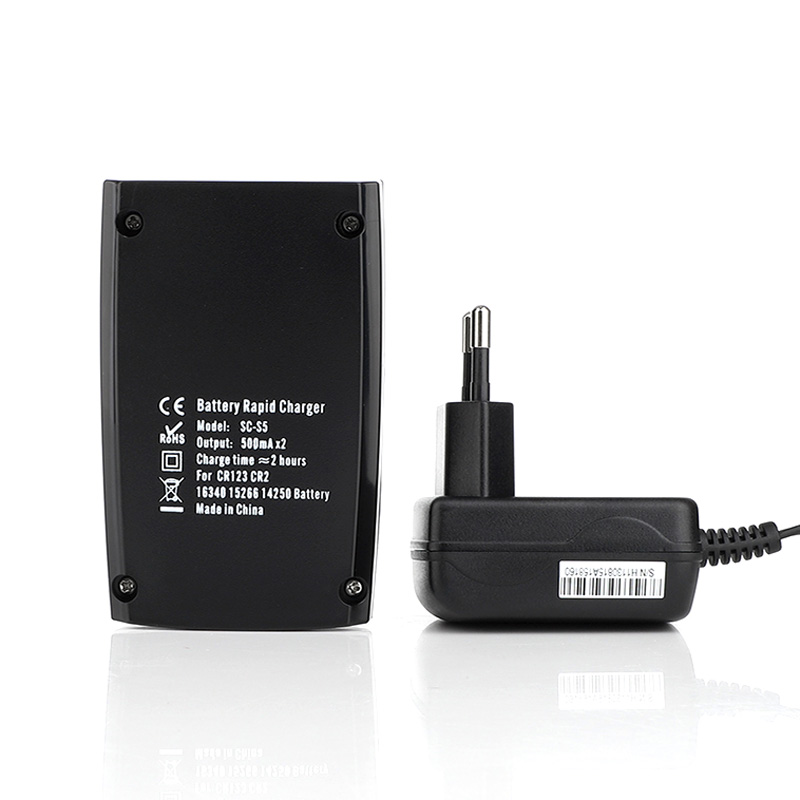

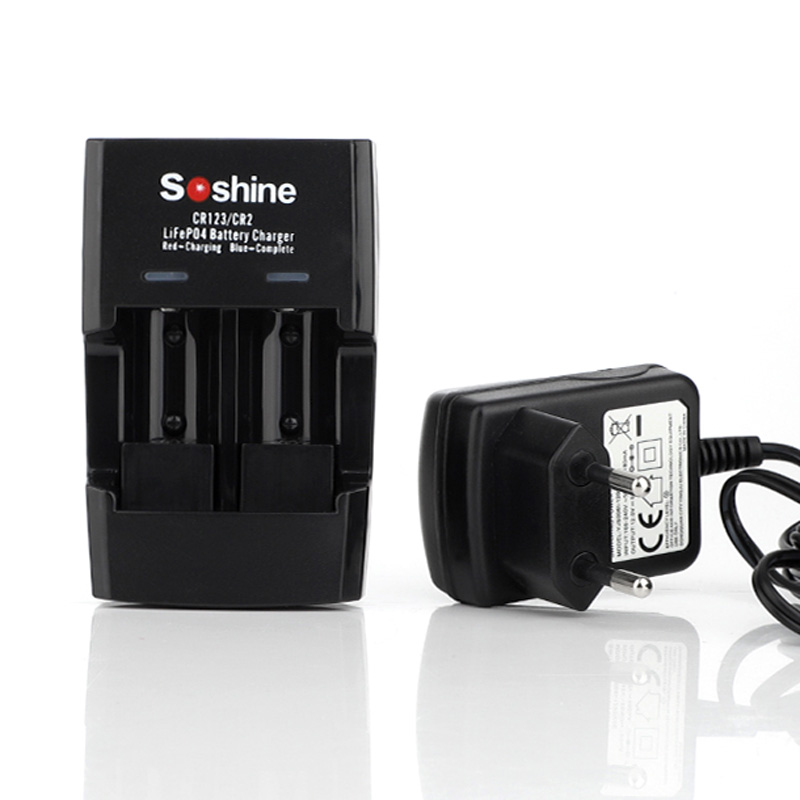

Charger with Adaptor


This charger is an intelligent charger especially designed to charge for 1-2pcs
LiFePO4  RCR123 / RCR2 / 16340 / 17335  3.2
LiFePO4  15266P(Protection) / 16340P(Protection) 3.2

Specifications:
Input::  12VDC 400mA-600mA
Output:  3.6VDC  300mA*1  300mA *2
Dimensions:L87*W55*H23 mm
Weight
41g
LED indicate:
Red  on  ----- Battery Charging Blue on -----Charge complete
Turn off  ------Stand by
Red-blue flash ---- Non rechargeable battery, Low voltage between <1.80V

Features:
End-of-charge voltage detection assures the safe and full charge any time
Short-circuit protection
Over voltage cut-off protection ----- prevents damage to your battery due to over voltage
Complete individual channels ------ convenience; prevent 2 batteries charge each other
Charge Method: CC/CV -------------- Charge battery fully and quickly
Reverse polarity protection --------- prevent damage to your battery and charger







Charge time:

Type

Model

Voltage (V)

Capacity(mAh)

1 or 2pcs Charge Time (h)*

LiFePO4

16340(RCR123)/protected

3.2

800

3.2

16340(RCR123)/protected

3.2

700

2.8

SOSHINE RCR123

3.0

600

2.4

17335/protected

3.2

700

2.8

17335/protected

3.2

650

2.4

15266

3.2

350

1.4

14250/protected

3.2

300

1.2

RCR2

3.2

350

1.4

RCR2

3.2

300

1.2







Not charging all the way?
1. Polarity reversed; Make correct contact for polarity (+ and -) according to the sign in the battery compartment until LED from blue turn red. This charger cannot Polarity Auto Detection.

2. Loose connections between battery and charger replace battery into the battery compartment, turn the battery until LED from blue turn red.
3. Use  non-rechargeable battery, like Lithium batteries or Ni-MH Ni-Cd battery, this charger only for Lithium Ion batteries, you should change battery.

4. Gently rub battery ends with a clean pencil eraser or cloth to remove the residue, load the battery into charger in right side until LED from blue turn red.

.



Tips:
It is normal for batteries to warm up while charging. They will cool down after they are charged.
If they are not used for more than one year, charge the battery completely.


Warning:
Charge only rechargeable Lithium-Ion batteries. Charging any other types of batteries may cause them to leak rupture or explode.
Do not disassemble, modify any part of the charger ,or attempt to use the chargers as power source.
Always unplug the charger from outlet before maintaining or cleaning,
This charger is not a toy and should not be used by children or infirm persons without adequate training or supervision.

Approve: adaptor ULCE EK PSE

Material: ABS ROHS

One year warranty.


This Soshine product is warranted only to the original purchaser upon presentation purchase proof, to be free from defects in materials and workmanship for one year from date of original purchase provided that no other repairs, alterations or modifications had been attempted by unauthorized personnel. Not applicable to damage caused by normal wear and tear or misuse. Repair or replacement of charger at Soshine option. For more information, please contact your nearest Soshine sales office.

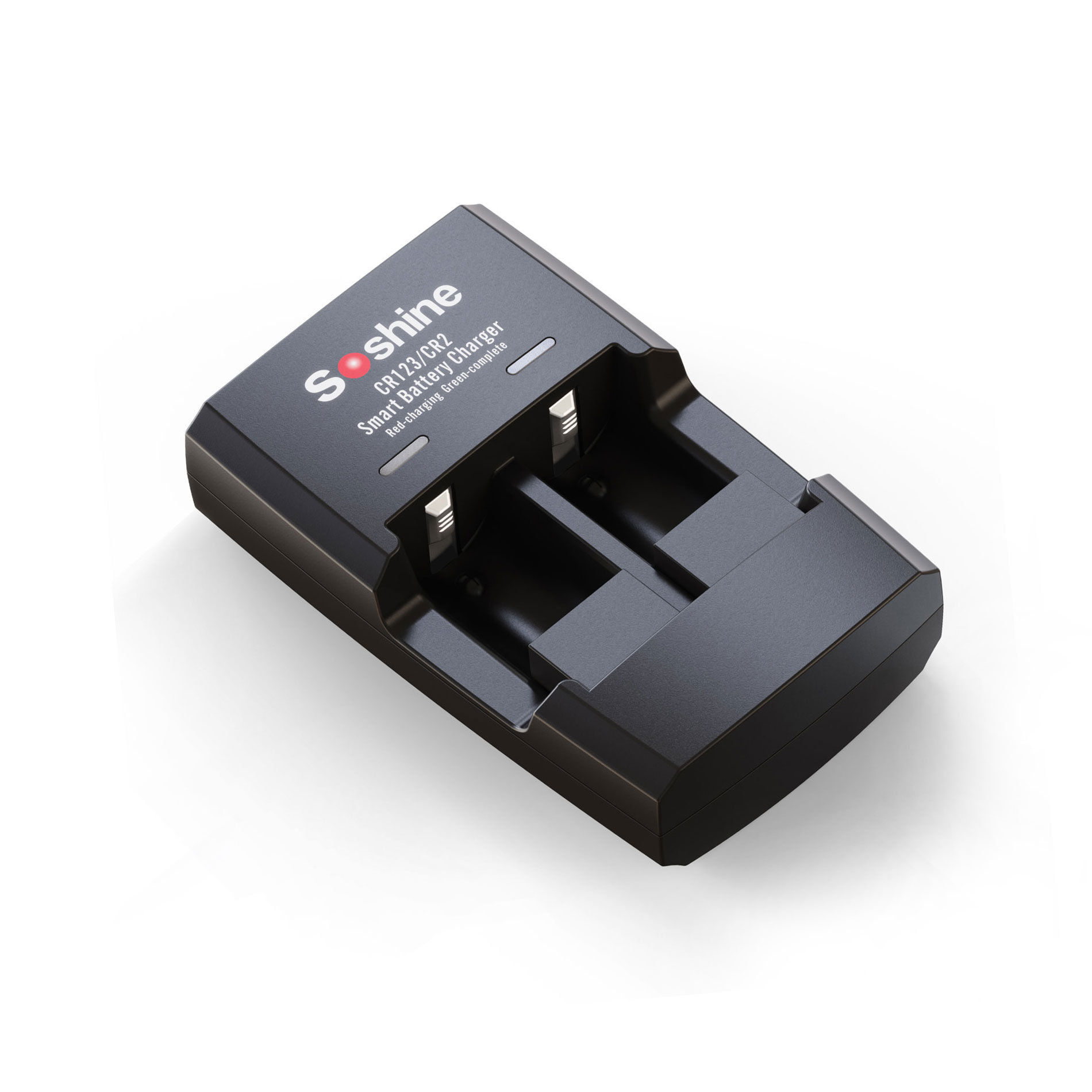

Smart LiFePO4 Battery Charger For RCR123 CR2
Bar code: 6951151524676

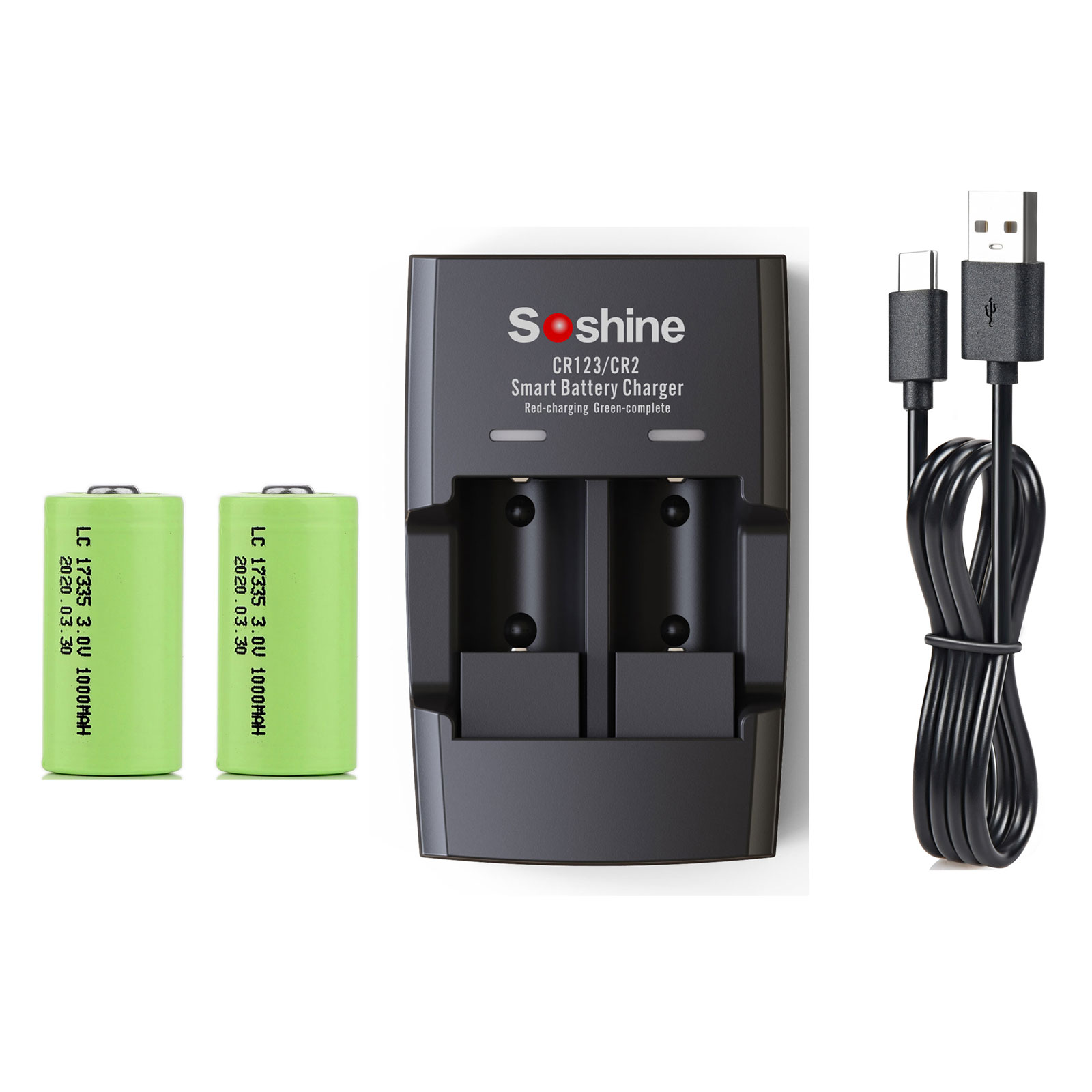

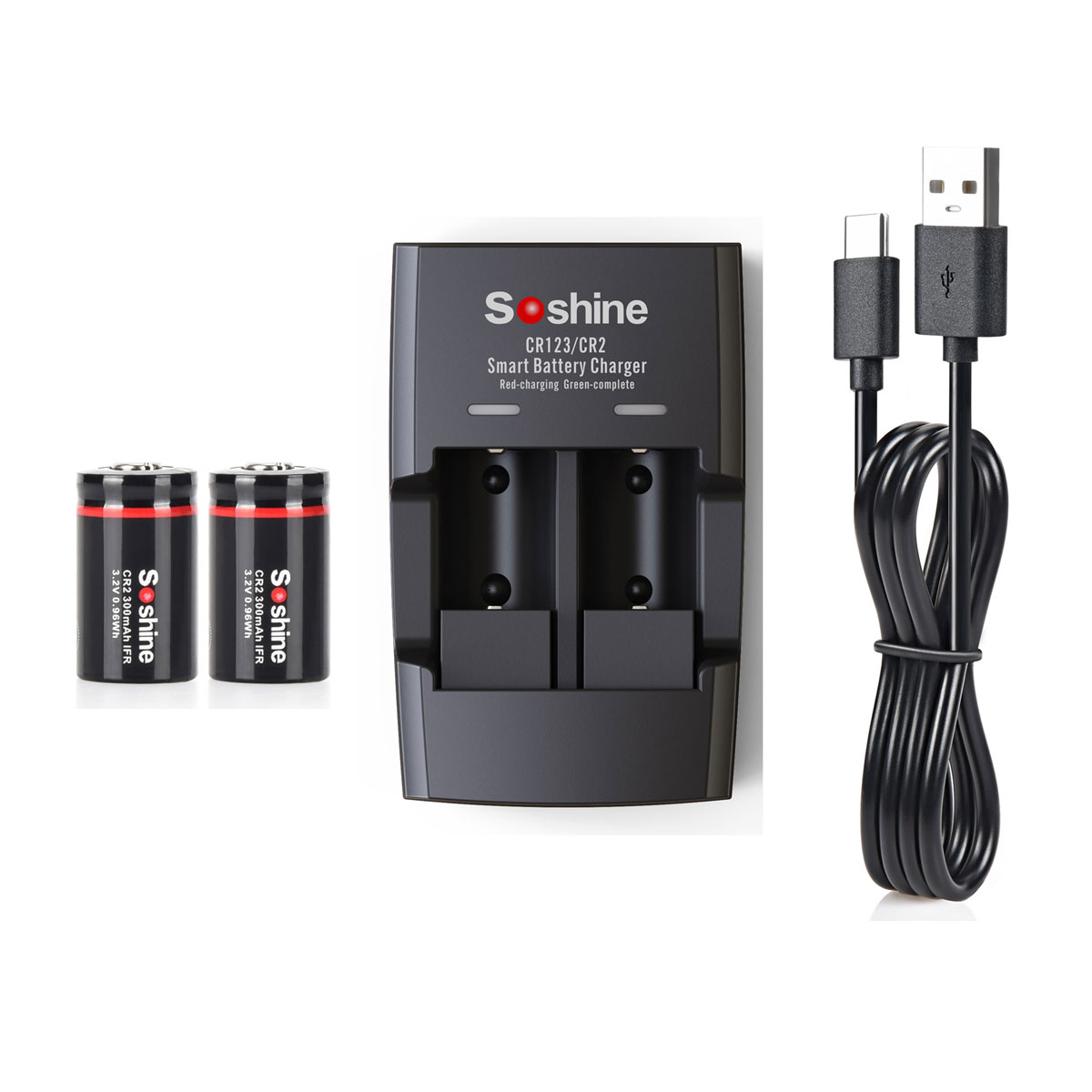

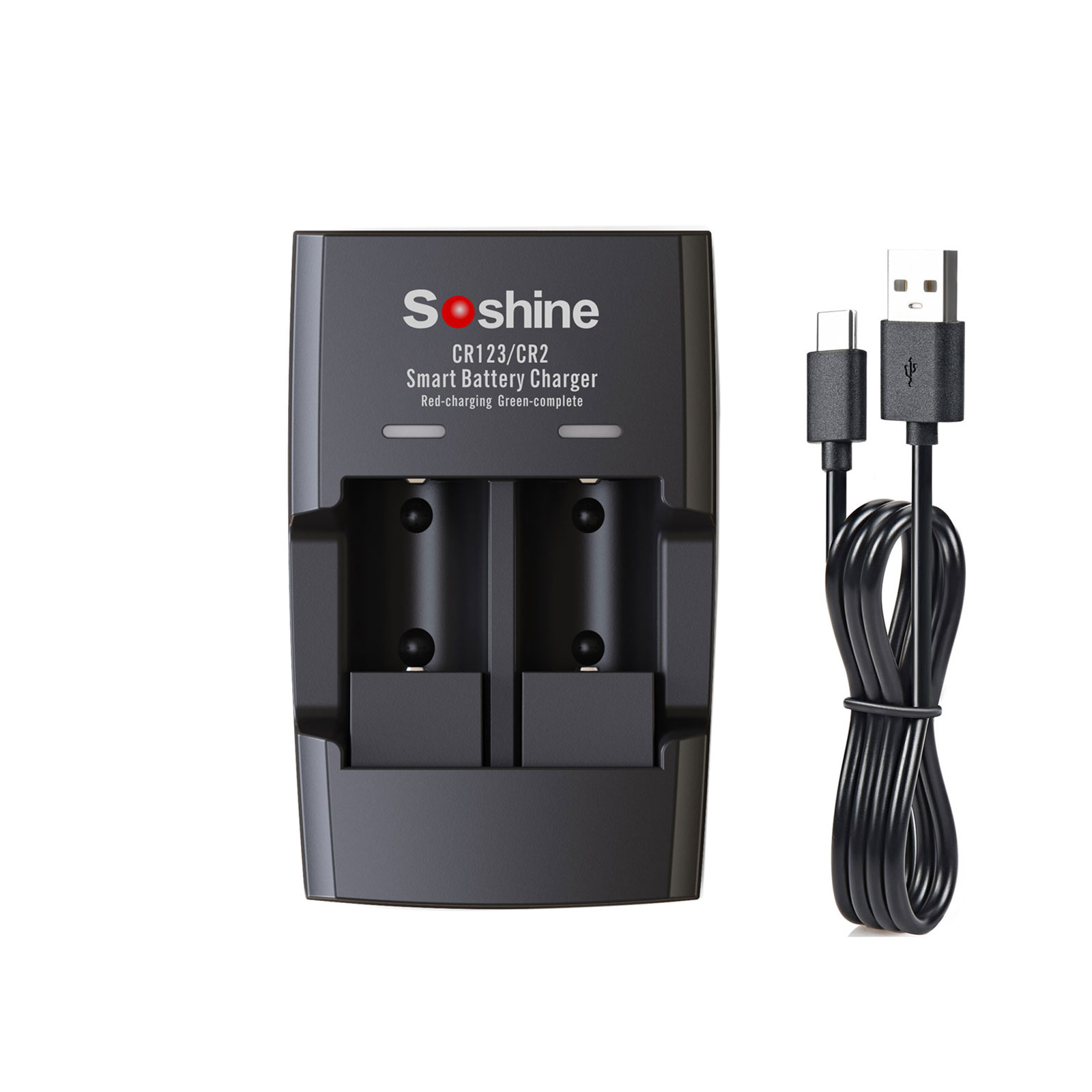

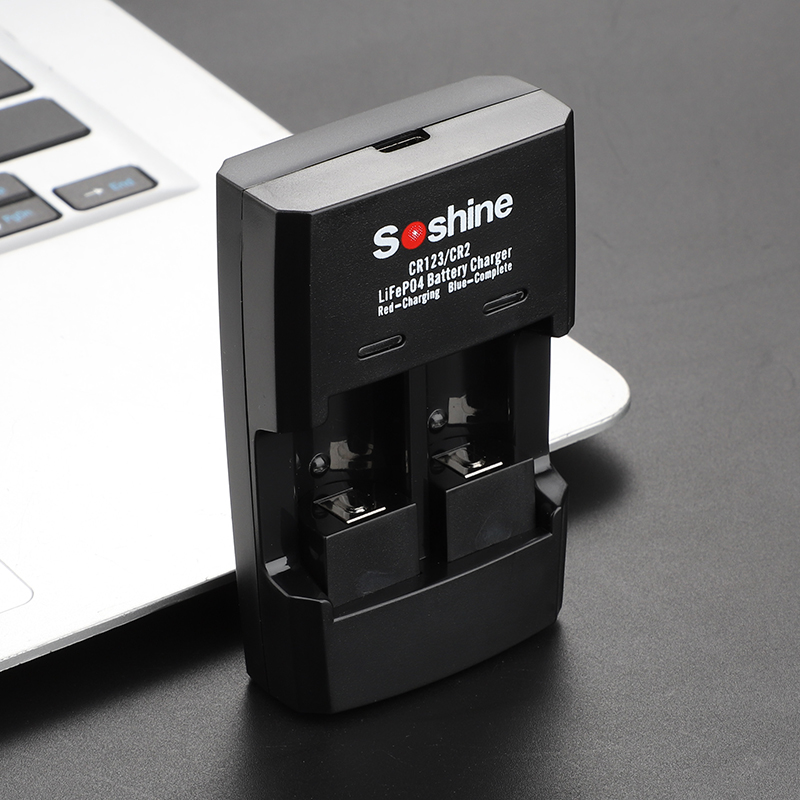

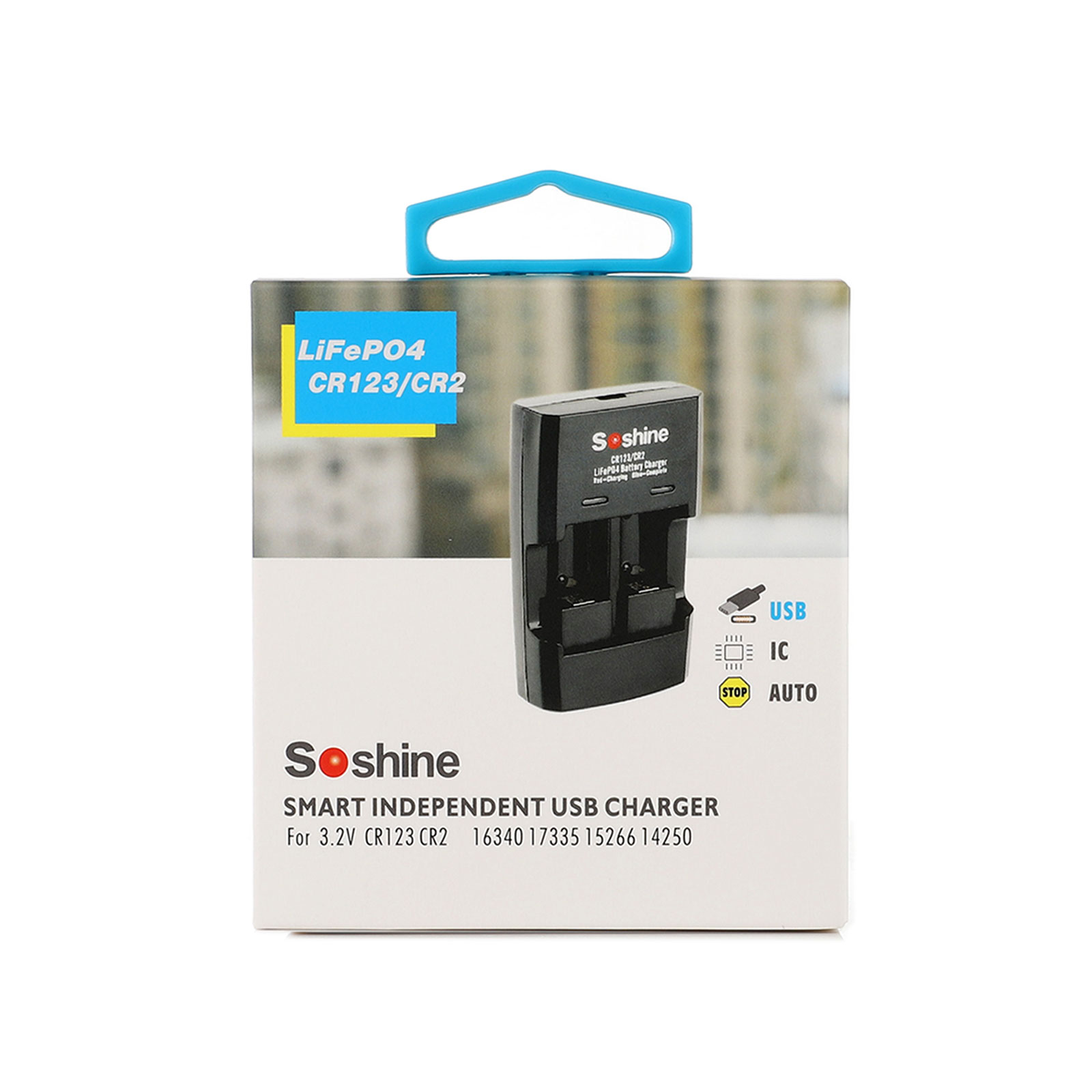

Charger with USB Port/ Cable:



Certification download:
 Patent No.: ZL 2010 3 0182834.1
