Soshine Speedy Smart Charger for 18650 17500 18500 17650 Li-Ion Batteries |S1
Soshine Speedy Smart Charger for 18650 17500 18500 17650 Li-Ion Batteries |S1
Product Overview
Each of the 4 battery slots monitors and charges indepently
Voltage and polarity detection
Reverse protection
Precision end-of-charge voltage detection
Charge 1-4pcs batteries
Quick safe
Auto alert indication for worse battery pack and bad battery
Auto active function for Lithium battery cell open (0 Voltage,Has been protected battery)
Model:  S1
Contact us:siling.soshine@gmail.com
or use this form to request a quote.
  Your email:
  Additional Comments:
  Check:
Description
1-4pcs 18650 Li-ion Battery Charger

Bar Code: 6951151524287

Model:S1

Speedy Smart charge

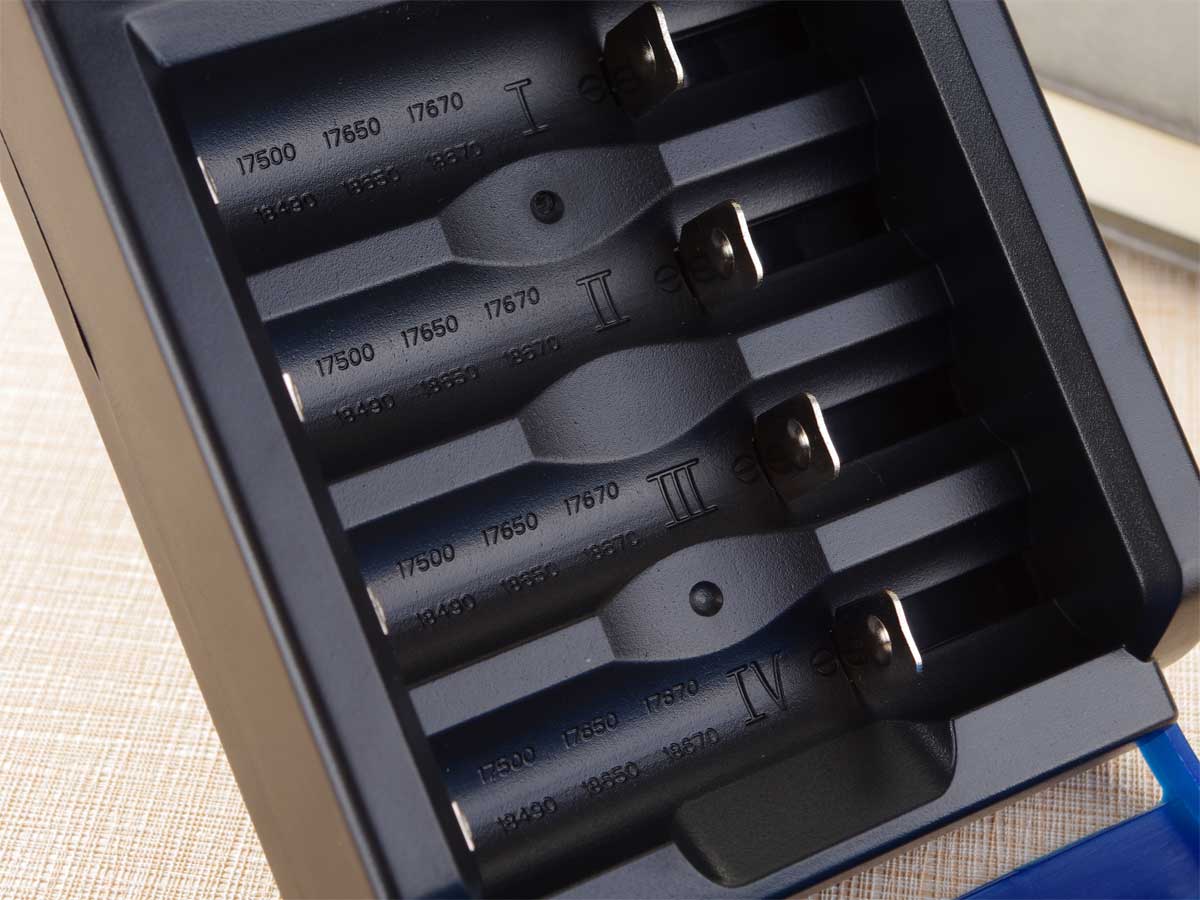

This charger is an intelligent charger especially designed to charge rechargeable 1-4pcs 18650/18650(protected)/17650/18500/17500 Lithium-Ion batteries



Features:

- End-of-charge voltage detection assures the safe and full charge any time
- Short-circuit protection
- Over voltage cut-off protection ------ prevents damage to your battery due to over voltage
- Each of the four battery slots monitors and charges independently
- Charge Method :CC/CV -------------- charge battery fully and quickly
- Reverse polarity protection ---------- prevent damage to your battery and charger
- Time control  -------------------------   4 individual clocks, after charge 8 hour, the power cut down

- Battery reset ---------------------------- make short circuit protection battery to reset



Specification:

Adaptor:

Input: AC100-24V 50/60Hz

Output: DC12V 1800mA /DC24V 1000mA

DC car adapter: 12V

DC out: 4.2V 1x 1000mA, 2x 1000mA, 3x 1000mA, 4x1 000mA

Using an adaptor that does not meet these specifications could damage the charger or the adaptor



Charger Size (mm): 134 x 93 x 34
Package Size (mm): 140 x 112 x 92
Charger Weight (g) :157
Charge+AC Adaptor+ Car Plug (g):375
Charger with Package Weight (g):436

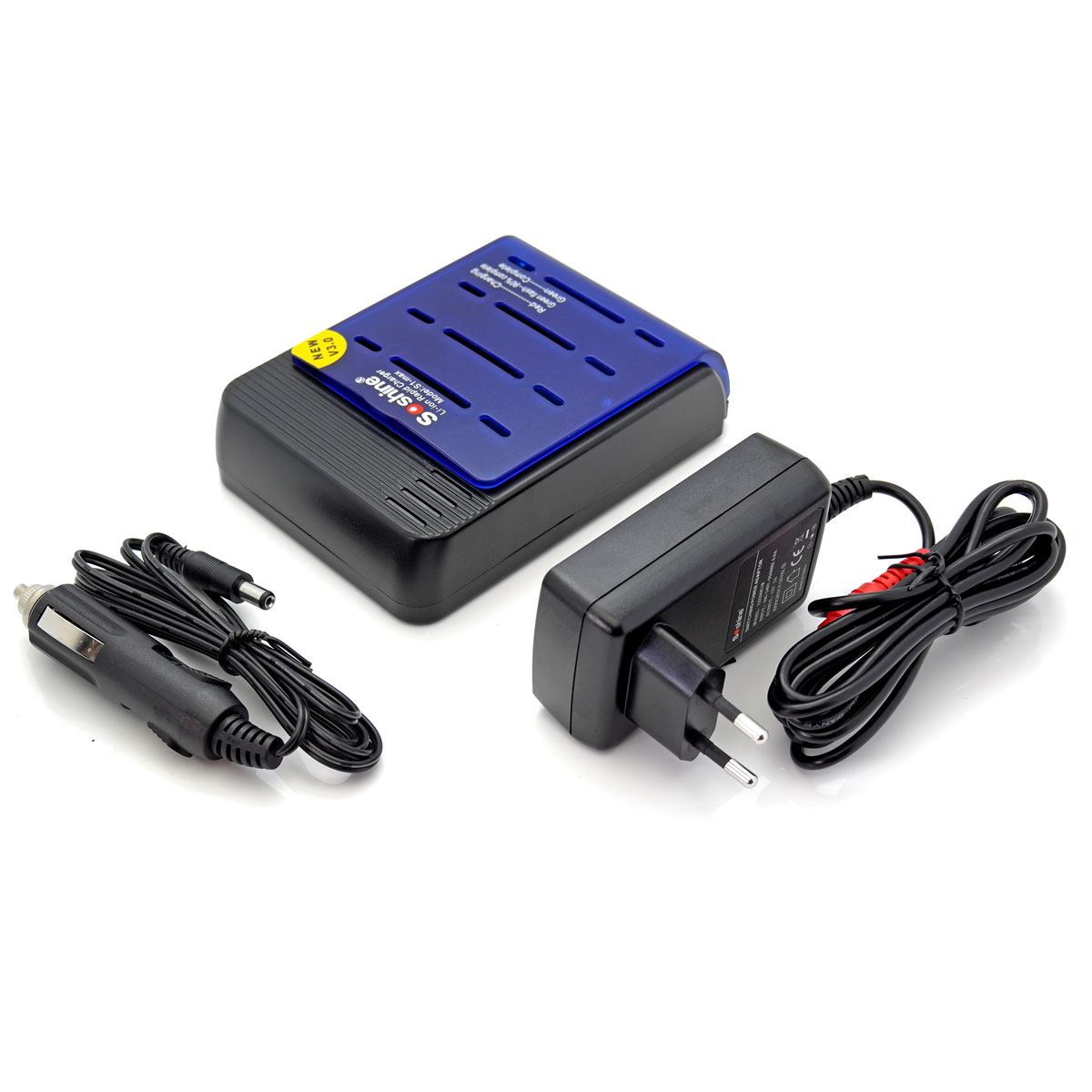

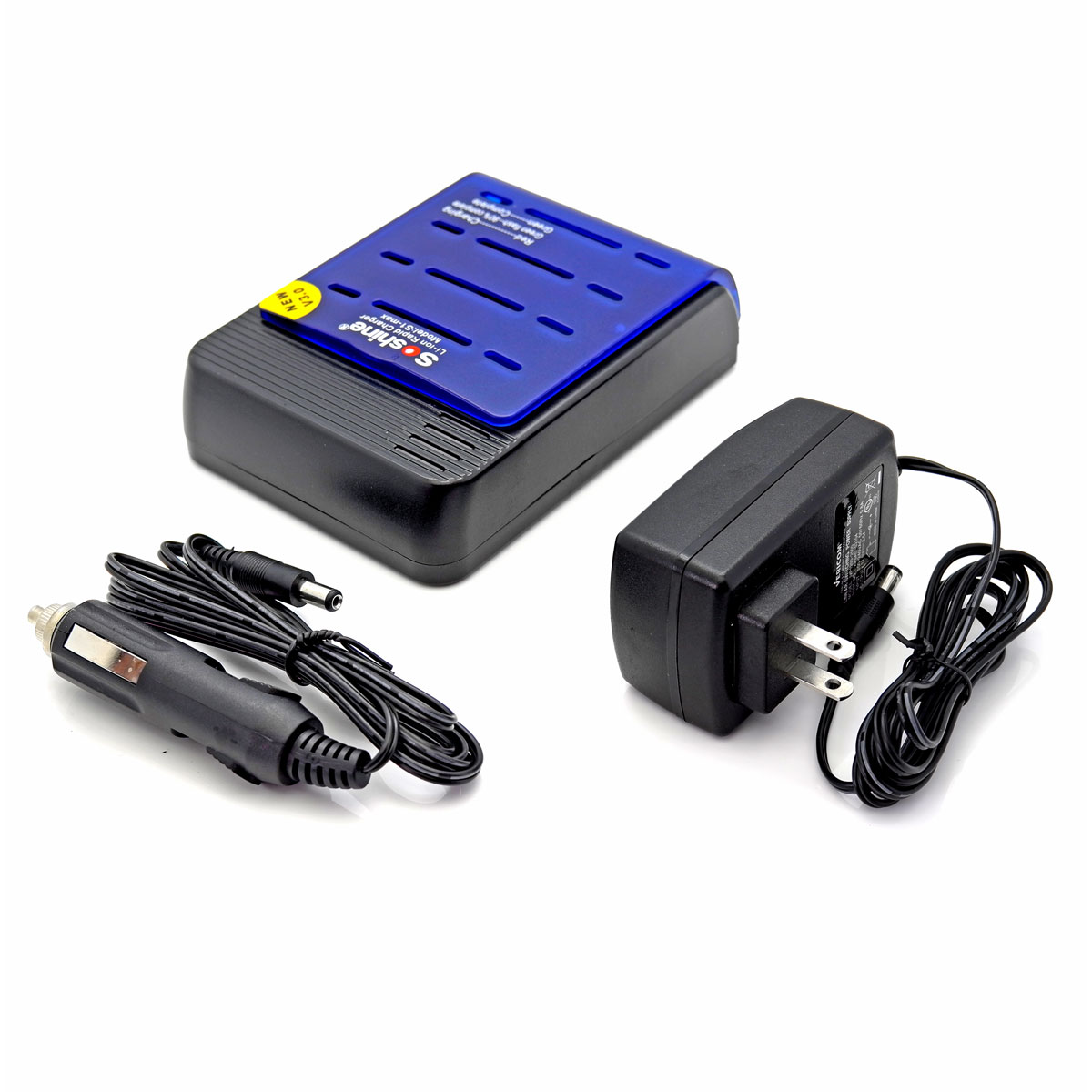

Package included:
1 x Charger(S1)
1 x AC Adaptor (US/EU/AU/UK)

1 x Car plug

1 x Instruction manual



Packing details:

20 boxes/carton

7.9 kg/carton

Carton size: 50*32*27 cm



LED indicates:
Red -Green once then Turn off -----------Stand by without battery or loose connections
Green on --------------------------------------- Charge complete
Red-Green flash------------------------------ Battery short circuit,

                                                               Non-rechargeable battery

                                                               Low voltage less than 1.8V

Charge time:



Channel

Type

Model

Capacity

Charging time(H)



(mAh)

1PCS

2PCS

3PCS

4PCS



I,II III,IV

Li-ion

18500

1400

1.7

1.7

1.7

1.7



Li-ion

17500

1200

1.3

1.3

1.3

1.3



Li-ion

17650

2600

3.2

3.2

3.2

3.2



Li-ion

18650

2200

2.7

2.7

2.7

2.7



Li-ion

18650

2600

3.2

3.2

3.2

3.2



Li-ion

18650

3400

4.1

4.1

4.1

4.1



Li-ion

18650

3500

4.2

4.2

4.2

4.1



This chart is for your reference only .The actually time may short than the chart.



Instructions for use:

-Insert the rechargeable Li-ion battery into the battery compartment

-Make correct contact for polarity (+ and -) according to the sign in the battery compartment

When using AC adaptor:

Connect the supplied AC adaptors barrel plug into jack on the back of the charger. Plug the AC adaptor into any available 100-240VAC outlet.

When using in vehicle-DC car adaptor:

Connect the supplied DC car adaptors barrel plug into the charges DC input jack. Plug the large end of the cord into the 12V car lighter power port

-The Red LED will glow to indicate the proper charging. After the battery is fully charged, the red LED will turn off and green LED will light on indicating the charged battery is ready for use.

-Unplug the charger and remove from the charger when not in use.



















Power supply:

Protect the power supply cable for the adaptor against the risk of being trodden on, pinched or folded, particularly near the sockets and the connection with the device.

Keep out of the reach of children or pet.

To disconnect the power supply cable, pull on the plug and not on the cord.

If the power supply cable is damaged, stop using the device immediately.



Tips:

It is normal for batteries to warm up while charging. They will cool down after they are charged.



Not charging all the way?

1 Gently rubs battery ends with a clean pencil eraser or cloth to remove any residue

2 Loose connections between battery and charger replace battery into the battery compartment; turn the battery until LED from green turn red.

3 Polarity reversed; load the battery into charger in right side until LED from green turn red.

Warning:

To avoid personal injury and property damage from, but not limited to, the risk of electric shock or fire:

Charge only rechargeable Lithium-Ion batteries. Charging any other types of batteries may cause them to leak, rupture or explode.

Do not open battery, dispose of in fire, put in backwards, mix with used or other battery types or short circuit-may ignited, explode, leak or get hot injury

Use the charger only in dry locations. Keep away from rain, snow or excessive moisture.

Do not operate the charger if damaged

Do not disassemble, modify any part of the charger ,or attempt to use the chargers as power source

Always unplug the charger from outlet before attempting maintenance or cleaning,

This charger is not a toy and should not be used by children or infirm persons without adequate training or supervision.



Approve: adaptor UL  CE  EK PSE SAA

Material: ABS ROHS



One year warranty

This Soshine product is warranted only to the original purchaser upon presentation of proof of purchase, to be free from defects in materials and workmanship for one year from date of original purchase provided that no other repairs, alterations or modifications had been attempted by unauthorized personnel. Not applicable to damage caused by normal wear and tear or misuse. Repair or replace of charger at Soshine option. For more information, please contact your nearest Soshine sales



Soshine 18650 charger S1 instruction manual  download:

http://www.soshine.com.cn/Down35.aspx



Patent No.: ZL 2010 3 0182810.6
