Soshine Li-ion 18650 Battery With Protected: 3.7V 3100mAh
Soshine Li-ion 18650 Battery With Protected: 3.7V 3100mAh
Product Overview
In Built Safety Circuitry
Model:  18650P-3.7-3100
Contact us:siling.soshine@gmail.com
or use this form to request a quote.
  Your email:
  Additional Comments:
  Check:
Description

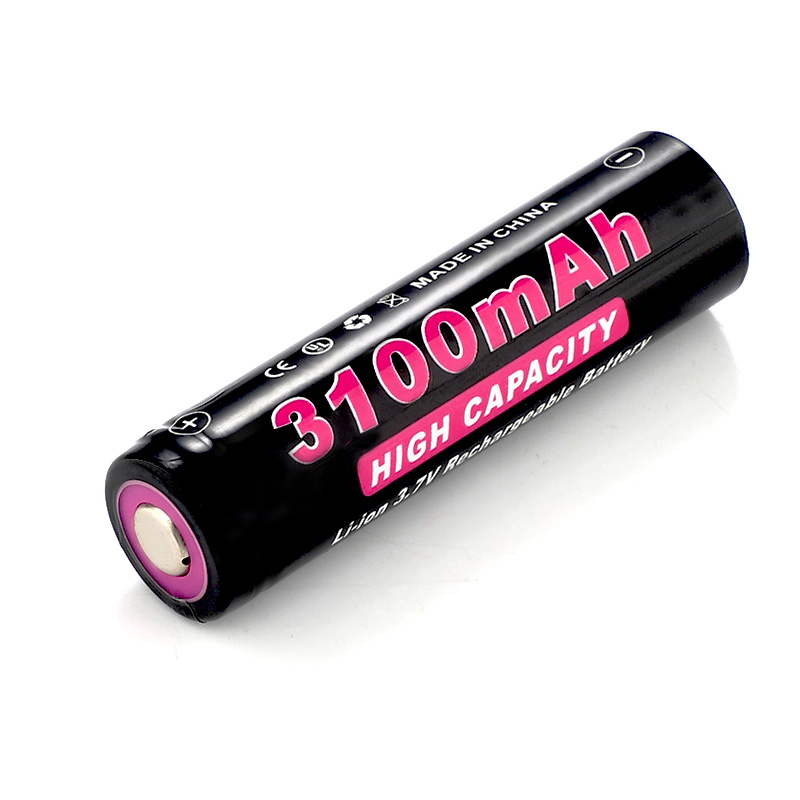

SOSHINE Brand 18650 Li-ION Battery With Protected 3100mAh 3.7V

Bar Code:  6951151512253

Model: 18650P-3.7-3100

Feature:
Positive nipple
Positive protection
Height: 68.5mm
Mini capacity: 3100mAh
In Built Safety Circuitry
Protection: overcharge protection, over discharge protection, short circuit protection
Current: instantaneous discharge current 12A, continuous discharge current 2.6A

Specification
System: Cylindrical Li-ion Battery
Type: 18650
Nominal Voltage: 3.7V
Capacity: 3100mAh
PCB Protected against:
Over charge (4.275±0.04V)
Over discharge (2.65±0.08V)
Over current
Dimension:
Positive hardware Diameter-d-7.5 mm
1 x Battery Size (mm): 68.5 x 18 (H x D)
4 x Battery Size (mm): 68.5x 18 x 18
Package Size (mm): 90 x 76 x 25(L x W x H)
Weight:
1 x Battery Weight (g): 48
2 x Battery+Battery Case with Blister Packing(g):125
4 x Battery Weight (g): 181
4 x Battery+Battery Case (g): 221

Package included:
4 x 18650(3100mAh)
1 x Battery Case(18650x4)

Note:
(1) The batteries should be stored at room temperature,charged to about 30% to 50% of capacity.
(2) During long term storage,in order to ensure the battery to maintain the capacity level,we suggest Li-ion batteries should be charged and discharged once every 6 months.


Time:2012-06-1  Views:5416
