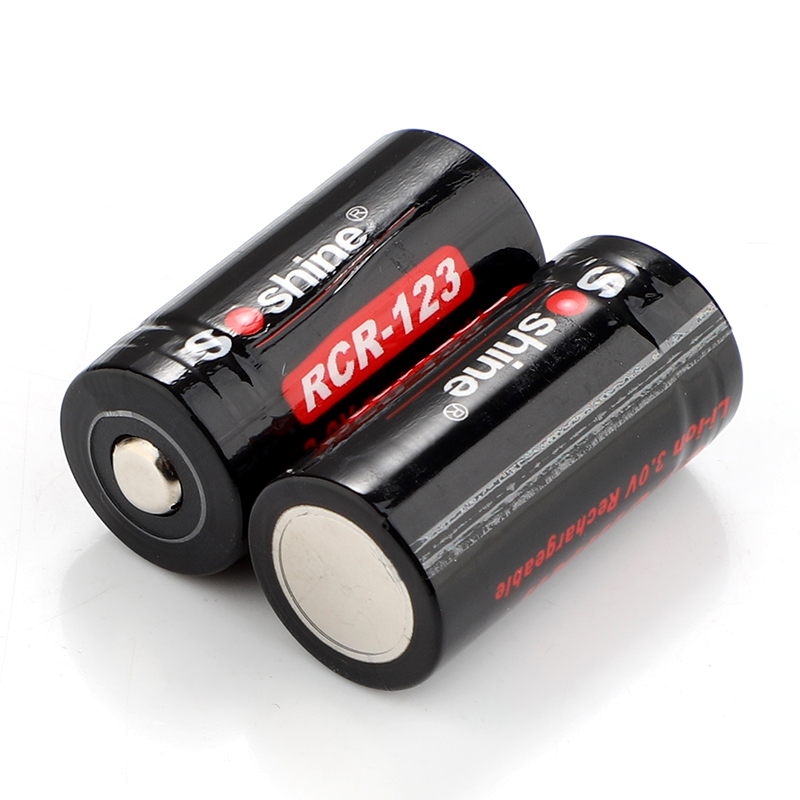

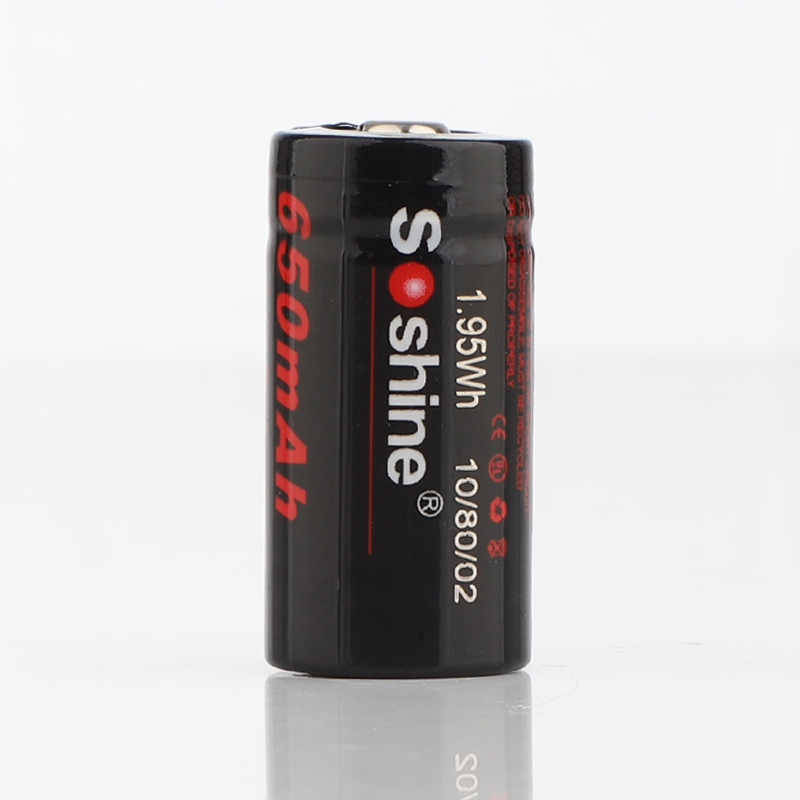

Soshine Li-ion RCR123 Rechargeable Battery: 650mAh 3.0V
Soshine Li-ion RCR123 Rechargeable Battery: 650mAh 3.0V
Product Overview
Li-ion 3.0V 650mAh,Rechargeable
Model:  16340-3.0-650
Contact us:siling.soshine@gmail.com
or use this form to request a quote.
  Your email:
  Additional Comments:

Soshine Li-ion 16340 RCR123 Rechargeable Battery: 650mAh 3.0V

Bar Code:  6951151512130

Model: 16340-3.0-650

3.0V 650mAh rechargeable Li-ion battery.
Can replace for 3.0V CR123, CR17345. The voltage of full charge & empty condition is 4.2v & 2.75v respectively

Rechargeable Times:Up to 500 times
Capacity: 650mAh
Output voltage:3.0V
Internal resistance:80


1) High quality and operating voltage 3.0V Li-ion rechargeable battery.
2) Product detail:ICR16340 Lithium-ion battery with capacity:650mAh.
3) Light weight, higher energy density, small volume.
4) Longer service life, 1C for Circulation using 500 charge/discharge Cycle, capacity above 80%.
5) Low self-discharge.
6) No memory effect.
7) Safer and more environmentally friendly.


Soshine 3.0V batteries have diodes in them. Li-ion chemistry produces 3.6V (nominal) and those Soshine are Li-ion batteries. The diodes are not there for protection. They are there to drop the output voltage from 3.6V (nominal) to 3.0V (nominal). So inside your battery is a charged Li-ion cell that has about 4.2V (full charged state of 3.6V Li-ion). But the power is coming through an output diode (0.6V typical) to drop the voltage to 3.6V (result of regulation) so that it can be put into devices that cant handle the 4.2V.This is the reason that you must use the 3.6V setting to charge them.


(1) The batteries should be stored at room temperature,charged to about 30% to 50% of capacity.
(2) During long term storage,in order to ensure the battery to maintain the capacity level,we suggest Li-ion batteries should be charged and discharged once every 6 months.
Test conditions:
1) Temperature: 25~30℃
2)Equipment: GHC5V50A32Z

Certification / Test report down:
